Electrode Sheet Laser Cleaning Inspection Solution
Product introduction
The electrode sheet laser cleaning inspection solution is mainly applied to lithium battery production equipment. Supporting both the single-side and double-side cleaning processes, the solution for the coating cleaning area of the laser cleaning machine is mainly used for the coating cleaning of the welding position .

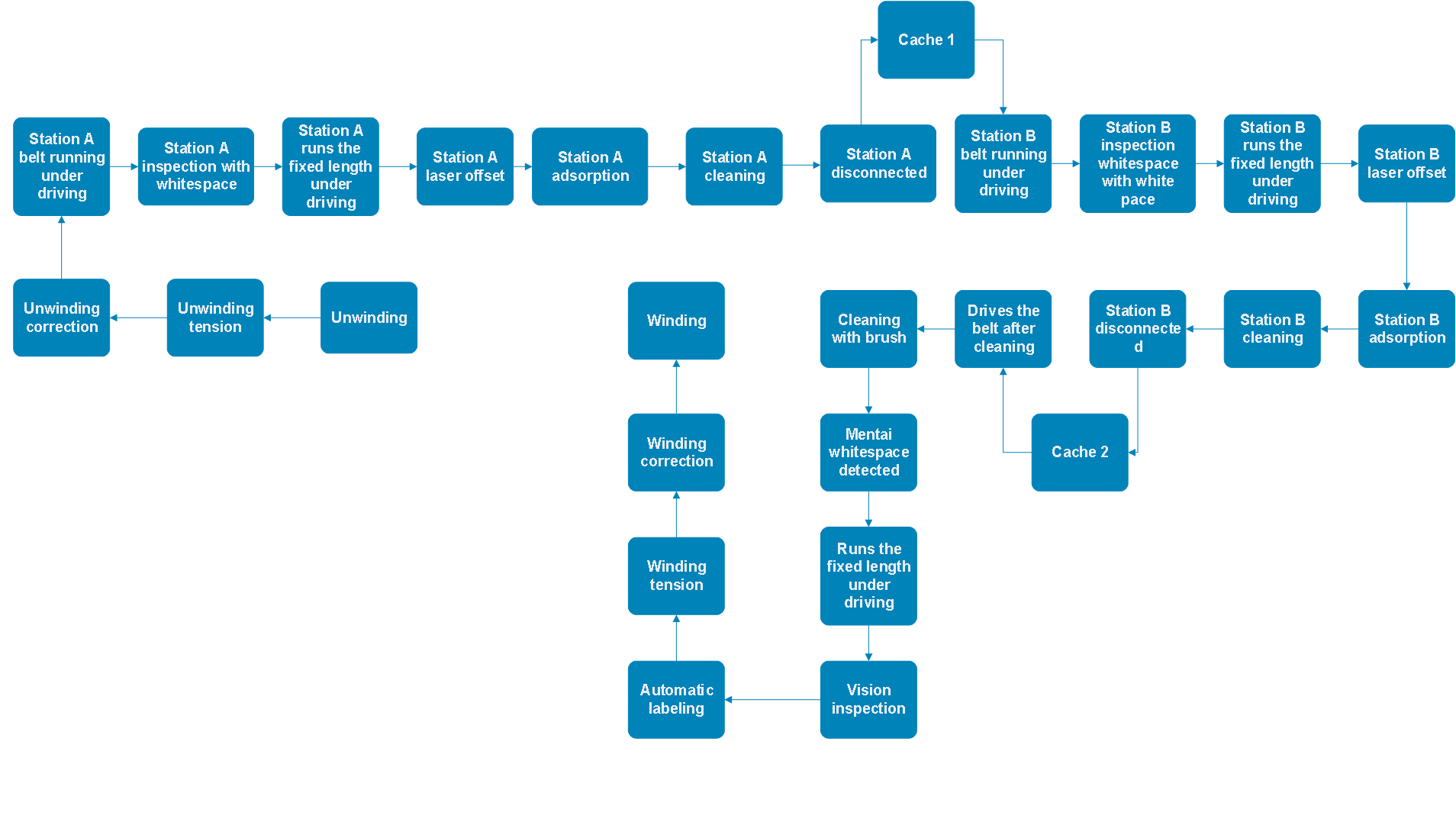

Production flowchart
Inspection items
 |
 |
 |
|||
|

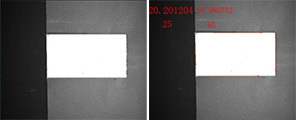

Dimension inspection
|

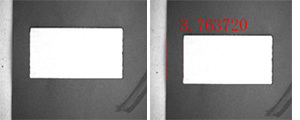

Top uncleaned
|

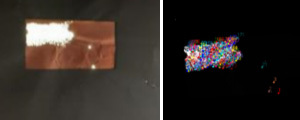

Residue inspection
|
|||
 |
 |
 |
|||
|

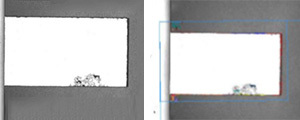

Oxidation inspection
|
Damage inspection
|
Pinhole inspection
|
Inspection indices
|
Item |
Accuracy |
Defect Recognition Rate |
Remarks |
|
|
Dimension inspection |
± 0.04 mm |
100% |
|
|
|
Front and back sides reversed |
± 0.05 mm |
|
|
|
|
Top uncleaned |
≤ 0.1 mm |
|
|
|
|
Residue inspection |
Diameter ≥ 0.1 mm |
100% |
|
|
|
Oxidation inspection |
Exists or not |
|
|
|
|
Damage inspection |
Exists or not |
100% |
|
|
|
Pinhole inspection |
Diameter: 0.08–0.25 mm, > 5 |
≥ 95% |
≤ 5% |
|
|
Inspection efficiency |
< 670 ms |
|||
Advantages
High accuracy:
Ensures the high production accuracy and stability of the equipment under long-time running
Supports both the single-side and double-side cleaning area inspection, with the highest accuracy up to 0.04 mm
High applicability:
Easy-to-use software and clear information display
Supports the inspection of the electrode sheet of various specifications
Supports the electrode sheet of different materials, with strong environmental adaptability
Wide range:
Supports both the single-side and double-side cleaning area
Value
1. Changes the traditional inspection method from semi-automatic inspection to automatic inspection
2. High return on investment, with an average investment payback period of 10 months for each system
3. High compatibility, supporting the electrode sheet of various specifications and materials
