3C Industrial Chain Process Solutions

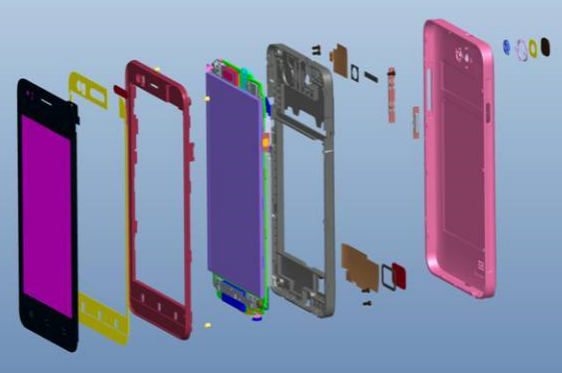

The processes of 3C products can be divided into five categories: attaching, locking, gluing, inspection, and wrapping. As an important part of 3C automation, machine vision plays an irreplaceable role in the precision assembly process.
Attaching
|
Process |
Mechanical Together |
Attaching Accuracy |
Main Application |
CPK |
|
Attaching |
XYθ module |
≤ ± 0.1 mm |
Attachment of vibration motor , lables, barcodes, QR code,plugins |
CPK ≥ 1.33 |
|
Robot |
≤± 0.15 mm |
Attachment of laptop lables, component and parts film |
||
|
Linear motor |
≤ ± 0.05 mm |
Attachment of wireless headset lables , camera assembly |
||
|
UVW |
≤ ± 0.005 mm |
Polarizer attachment, LCD attachment, OLED attachment |
Locking
 |
 |

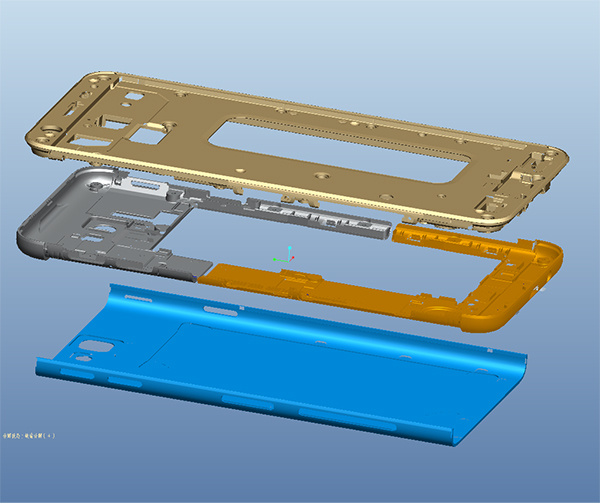

The integrated vision + motion control solution provides high-precision positioning, torque control algorithm for screw locking machine, and tabular programming, quickly realizing the application of screw locking machine processes in 3C products. It can be applied in the screw locking of such products as mobile phone frames, tablet computers, laptops, and home appliances.
Gluing
The integrated 2D/3D+ motion control solution provides high-precision vision positioning, motion control trajectory guidance, and tabular programming, solving the gluing application in irregular objects, such as the LCD section of 3D curved phones, the mobile phone assembly, and smartwatch gluing.
Inspection
The IV700 series vision controller integrates the deep learning algorithm module, the conventional algorithm of speckle analysis, the line inspection tool, circle inspection tool, color segmentation tool, QR code recognition tool, and glue bead inspection tool. It is widely used in the quality control of 3C production lines, including glue mark inspection, OCR inspection, character defect inspection, and Acoustic diaphragm defect inspection.
